Metal Housing 8 Port Gigabit Ethernet Switch 16Gbps Switching Capacity Fanless Design

Certification : CE, FCC, RoHS

Delivery Time : 2-8 work days

Port type : 10/100/1000Base-T RJ45

Power consumption : Standby<2W, full load<9W

Payment Terms : T/T,Western Union

Place of Origin : China

MOQ : 1

Buffer memory : 2M

Input voltage : DC5V

Supply Ability : 500000 pcs/month

MAC table : 2K

Operating temperature : 0~+55°C

Dimensions : 142*77.5*26mm

Switching capacity : 16Gbps (non-blocking)

Model Number : ONV-H3008

Port count : 8

Brand Name : ONV

Packaging Details : Packaging dimensions: 145*84*68mm, weight: 0.4kg, Carton dimensions: 490*440*270mm, 50 pcs/carton, weight: 21kg

Forwarding rate : 11.9Mpps @64byte

Contact Now

8-Port Gigabit Ethernet Switch

The ONV-H3008 is a Gigabit Ethernet switch independently developed by ONV. It features 8×10/100/1000Base-T adaptive RJ45 ports and is designed with a large backplane and cache switching chip to improve large file forwarding rates, effectively solving video freeze and picture loss issues in high-definition surveillance environments. Ideal for hotels, banks, campuses, factory quarters, and small-to-medium enterprises seeking cost-effective networking solutions. Unmanaged mode enables plug-and-play operation with no configuration required.

Technical Specifications

Feature	ONV-H3005	ONV-H3008
Interface Characteristics
Fixed Port	5×10/100/1000Base-T RJ45 ports (Data)	8×10/100/1000Base-T RJ45 ports (Data)
Ethernet Port	10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100m) 100BASE-TX: Cat5 or later UTP (≤100m) 1000BASE-T: Cat5e or later UTP (≤100m)
Chip Parameters
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode	Store and forward (Full line speed)
Switching Capacity	10Gbps (non-blocking)	16Gbps (non-blocking)
Forwarding Rate @64byte	7.44Mpps	11.9Mpps
MAC	2K
Buffer Memory	2M
LED Indicator	Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR/ Input Voltage	5W/ DC5V	9W/ DC5V
Power Consumption	Standby<1W, full load<5W	Standby<2W, full load<9W
Power Supply	External power adapter, AC100~240V 50-60Hz, 0.56A
Physical Parameters
Operation Temp/ Humidity	0~+55°C, 5%~90% RH non-condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H)	90×70×27mm	142×77.5×26mm
Net /Gross Weight	0.25kg /0.35kg	0.3kg /0.4kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	1 year, lifelong maintenance

Metal Housing 8 Port Gigabit Ethernet Switch 16Gbps Switching Capacity Fanless Design

Key Features

Gigabit Rate, High-Speed Transmission

Support non-blocking wire-speed forwarding
Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
Support Gigabit RJ45 port, high speed, fast transmission, convenient for flexible networking, meeting various high-definition network requirements

Stable and Reliable

CE, FCC, RoHS certified
Plug and play, no configuration required
User-friendly panel with LED indicators for PWR and Link status
Self-developed power supply with high redundancy design for long-term stable power output
Low power consumption, fanless design with metal housing for excellent heat dissipation

Dimensions

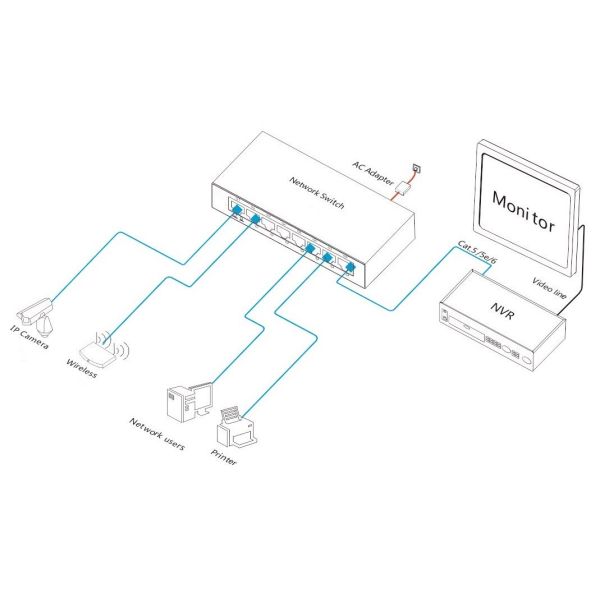

Application

Ordering Information

Model	Description	External Power Adapter
ONV-H3005	Ethernet switch with 5×10/100/1000M RJ45 ports. External power adapter.	5W
ONV-H3008	Ethernet switch with 8×10/100/1000M RJ45 ports. External power adapter.	9W

Packing List

Packing List	Qty	Unit
8-port gigabit Ethernet switch	1	Set
Power Adapter	1	PC
User Guide	1	PC
Warranty Card and Certificate of Conformity	1	PC
